1. Equipment Description
Zero Dynamic’s Spindle Running-In Testing Machine, Mechanical Spindle Running-In Machine With Four Bases is suitable for monitoring the running-in status of mechanical spindles after maintenance, mainly to monitor the temperature changes at the bearings. 4 bases can run 8 spindles at the same time.
Zero Dynamic’s Spindle Running-In Testing Machine, Mechanical Spindle Running-In Machine With Four Bases adopts servo motor to drive the belt to drive the spindle running, high power servo motor (7.5kw) can achieve the highest spindle running speed of 24000 rpm. The equipment can realise multi-segment speed automatic run-in and speed, time can be set separately for each segment. The temperature monitoring modules can generate temperature curve in real time during the running process, and has temperature alarm function. If the temperature is too high or the sensor is disconnected, it will alarm and reduce the speed or stop the machine automatically. Spindle run-in results can be printed in paper or PDF format.
2. Technical Parameters:
| Serial No. | Item Details | Parameter Range |
| 1 | Simultaneous running-in spindle number | 8 PCS |
| 2 | Spindle running-in drive motor | 7.5KW servo motor |
| 3 | Maximum speed of drive motor | 6000rpm |
| 4 | Distance range of running in machine supporters | 50-650mm |
| 5 | Diameter range of supporting spindle | Φ50-Φ260mm(can be extended to Φ350mm) |
| 6 | Model of temperature detection sensor | Thermocouple (temperature resolution 0.1 ℃), measurement accuracy ±3℃ |
| 7 | Monitorable range of temperature | 0-120℃ |
| 8 | Max revolving speed of driving spindle | 24000(Diameter of driving spindle is Φ38) |
| 9 | Monitoring result | Can be printed and saved |
| 12 | USB interface | Printer |
| 11 | Equipment dimension | 1050*700*570mm |
| 12 | Total weight | About 3000KG
|

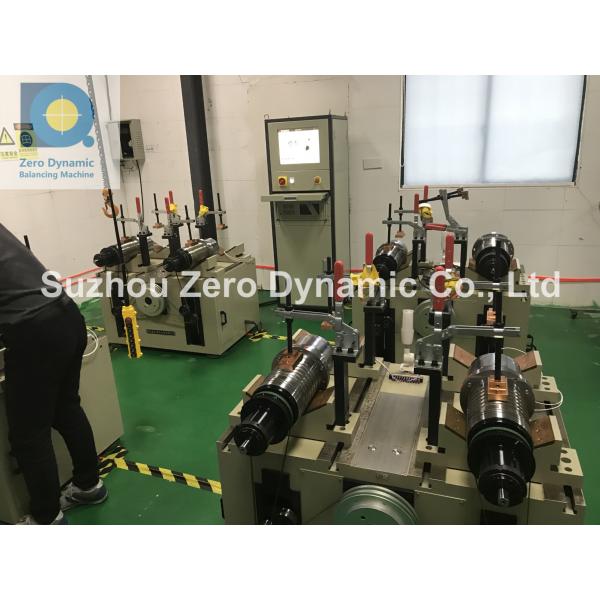

3. Equipment Photo:
4. Main Features:
4.1 It is easy to operate and can monitor in real-time, ensuring spindle performance.
4.2 Intelligent running-in process control, proving the most professional running-in test of spindle performance.
4.3 The humanized spindle temperature rise curve recording diagram and numerical table is portable and can accurately judge the relevant performance of the spindle.
4.4 It can be unattended, the print format of test result can be either in paper or PDF format.
5. About Zero Dynamic:
Suzhou Zero Dynamic Co., Ltd is a top Chinese manufacturer engaging in full automatic balancing equipment and related vibration measurement since 2003.
Over the past 20 years, Zero Dynamic has developed 100+ kinds of equipments. We mainly deals with all kinds of advanced dynamic balancing equipment, field dynamic balancing instrument, vibrometer and motor performance testing machine. High revolving speed and high precision are the key features of our products. We have served 3000+ clients in China and abroad, including many world-famous companies such as LG, Black&Decker, Nidec, Huawei, Foxconn, Midea, Ecovas, Daikin, Lexy.
Now (2024) Zero Dynamic has a factory of 10,000sqm and more than 120 staff including a professional R&D team of 30+ engineers and 20+ debugging and after-sales team.
As an important participant in Chinese dynamic balancing industry, Zero Dynamic continues to increase the development of new products, and is actively developing into the new energy industry as well as aerospace and other high-speed dynamic balancing and intelligent manufacturing fields, aiming to provide customers with reliable and diversified product choices.
6. Why choose Zero Dynamic Balancing Machine?
6.1 High-speed and high-precision. Zero Dynamic is good at developing and manufacturing all kinds of balancing machines, especially high-speed and high-precision soft-bearing balancing machines and automatic balancing machines. 20+ years of industry experience and 3000+ customer service experience make Zero Dynamic have the top new product development ability.
6.2 Low equipment failure rate. Equipment parts adopt famous brands: Mitsubishi, Schneider, SMC, Keyence, etc. Key parts have patents, high safety protection level, stable balance performance, service life of more than 10 years.
6.3 Adequate stock. Zero Dynamic has a factory of 10,000 ㎡ and more than 120 staff including a professional R&D team of 30+ engineers, 20+ debugging and after-sales team. We always keep 100+ balancing machines in stock, covering most common balancing machine models. Once order has been confirmed, balancing machines in stock can be commissioned and shipped out within 1-2 weeks.
6.4 Perfect after-sales service. Zero Dynamic has an after-sales service team of 20+ people which serve our clients wholeheartedly. For our clients, no matter the equipment is within or beyond the 12-month warranty period, we can provide technical consultance service. Within warranty period, our service team will give a telephone response within 4 hours after receiving client's fault report and reach the machine site within 24hours (within the city) or 72 hours (other cities or provinces). If the fault can't be cleared, our service staff could only leave the site after getting client's approval.
8. Our Exhibitions:

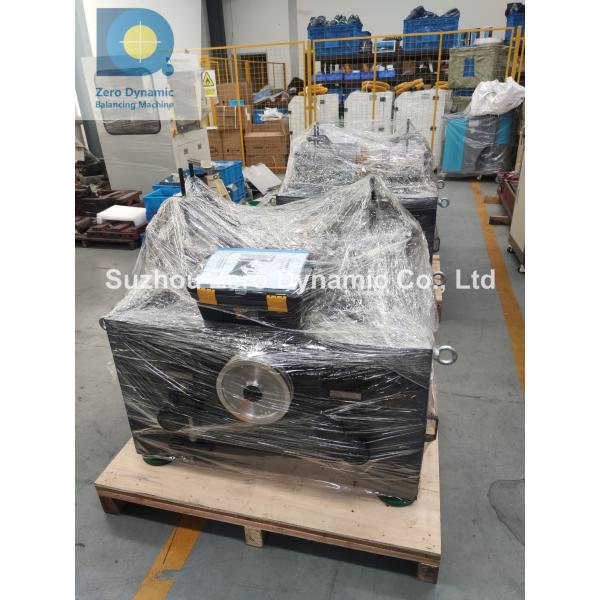

9. Packaging & Shipping:
